High filling accuracy Semi Automatic Powder Filling Machine with automaticlly feeder
General Description :
This series packing machines can handle weighing,filling functions etc.Featured with real-time weighing and filling design these machine can be used to pack high accuracy required,with uneven density,free flowing or non free flowing powder or small granule.I.e. Protein powder,food additive,solid beverage,sugar,toner,veterinary and carbon powder etc.
Features :
1. Stainless steel structure;split hopper could be washed easily without tools.
2. Servo motor drive screw.
3. Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
4. PLC control, touch screen display, easy to operate.
5. Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
6. Save the parameter of different filling weight for different materials.To save 20 sets at most.
7. Replacing the auger parts,it is suitable for material from super thin powder to granule.
Specification :
| Model | TP-PF-A11S |
| Control system | PLC & touch screen |
| Hopper volume | 25L split hopper |
| Filling weight | 1-500g |
| Weight dosing | By load cell |
| Filling accuracy | ≤ 100g, ≤±2%; 100 – 500g, ≤±1% |
| Filling speed | 30-100 times per min |
| Power supply | 3P AC208-415V 50/60Hz |
| Total Power | 0.93kw |
| Total weight | 160kg |
| Overall Dimensions | 800x790x1900mm |
Configuration List :
| No. | Name | Pro. | Brand |
| 1 | PLC | Taiwan | DELTA |
| 2 | Touch Screen | Taiwan | DELTA |
| 3 | Servo motor | Taiwan | DELTA |
| 4 | Servo driver | Taiwan | DELTA |
| 5 | Switching powder supply | | Schneider |
| 6 | Emergency switch | | Schneider |
| 7 | Contactor | | Schneider |
| 8 | Relay | | omron |
| 9 | Proximity switch | Korea | Autonics |
| 10 | Level sensor | Korea | Autonics |
Detailed photos:
A: split type hopper (simple to open the hopper and change different No. auger)
B: Leakproof acentric device (suitable for powder and small granules with good fludity)
C: Level sensor in the hopper (to control feeder automaticlly feeding)
D: High accuracy auger (hand polishing)

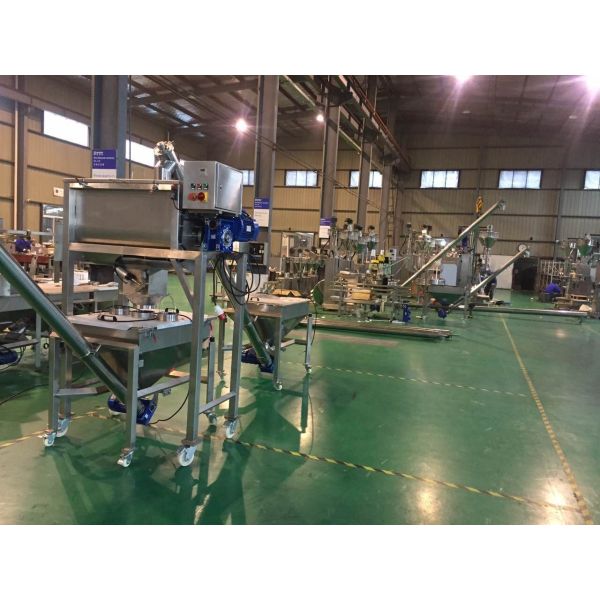

Packing line:
A: stairs+mixer+feeder+stotage bin+feeder+filler
B: Unscrambling turning table+filler with conveyor+feeder
Our factory :
